Problem
If you are using the Mini I/O cable and are not able to read a 24V coming out it could be related to several issues.
Related Error codes:
Error Codes
Diagnostic #1: Determine if you are using external power mode.

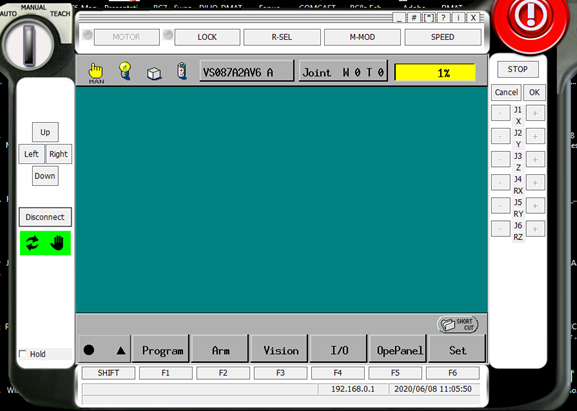

Step 1:Select I/O tab (F4) | ![]() |

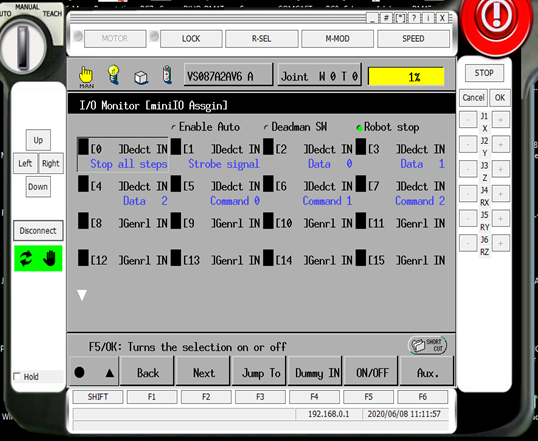

Step 2:Select Aux tab (F6) | ![]() |
Step 3:Select Int/Ext tab (F4).Is controller set to internal or external? | ![]() |
Diagnostic #2: Is controller setup for NPN/PNP?
Step 1:Pictures show a board that is currently setup for NPN. | ![]() |
Step 2:Check fuses on I/O board. | |
Step 3:Check IC chips on board. New robot system comes with 2 new IC chips. |
Diagnostic #3: Confirm Mini I/O pinout
Step 1:Please visit DENSO Wave website: You will need to register if you don’t have a login. Download the RC7 user manuals and look for Mini I/O (CN 5) pin out. Please confirm all wiring of the 24V circuit. ***If external power is used check and confirm all wiring of external device. |
